Preliminary cyclone sizing from your process inputs.
Enter your process conditions and generate preliminary cyclone separator dimensions using documented engineering methods for technical review and reporting.
Multiple cyclone methods. Traceable preliminary results..
The calculator supports multiple cyclone design families and methods, including high-efficiency, conventional, and high-capacity configurations. Based on the selected family and method, it calculates the principal cyclone dimensions from your process inputs for preliminary engineering evaluation and reporting.
Process inputs required

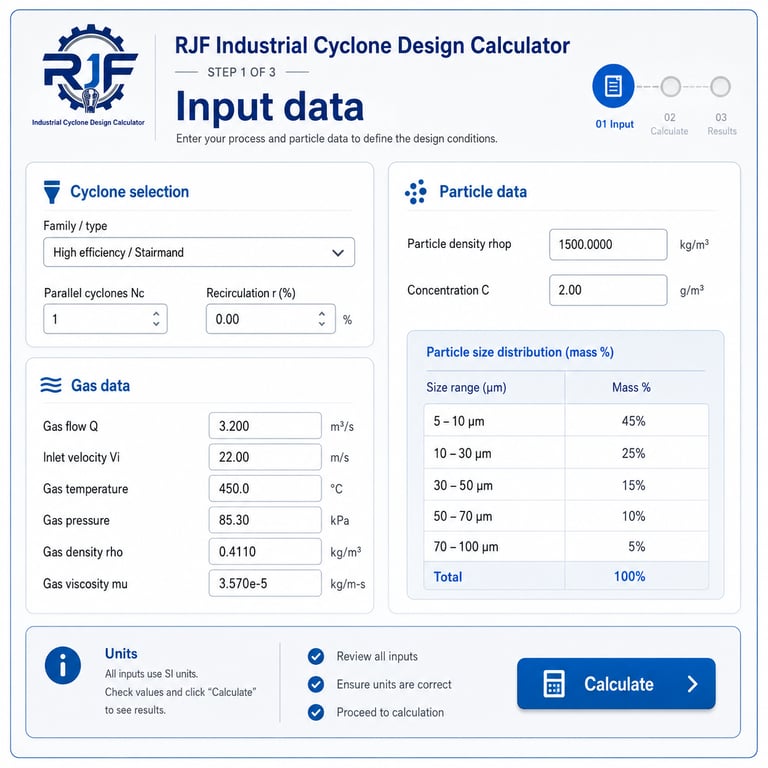

The calculator uses user-defined gas data, particle properties, particle size distribution, and optional off-design conditions to estimate cyclone dimensions and expected performance. Inputs include gas flow, inlet velocity, temperature, pressure, gas density, viscosity, fan efficiency, particle density, concentration, and mass distribution by particle size range.
Outputs and report traceability

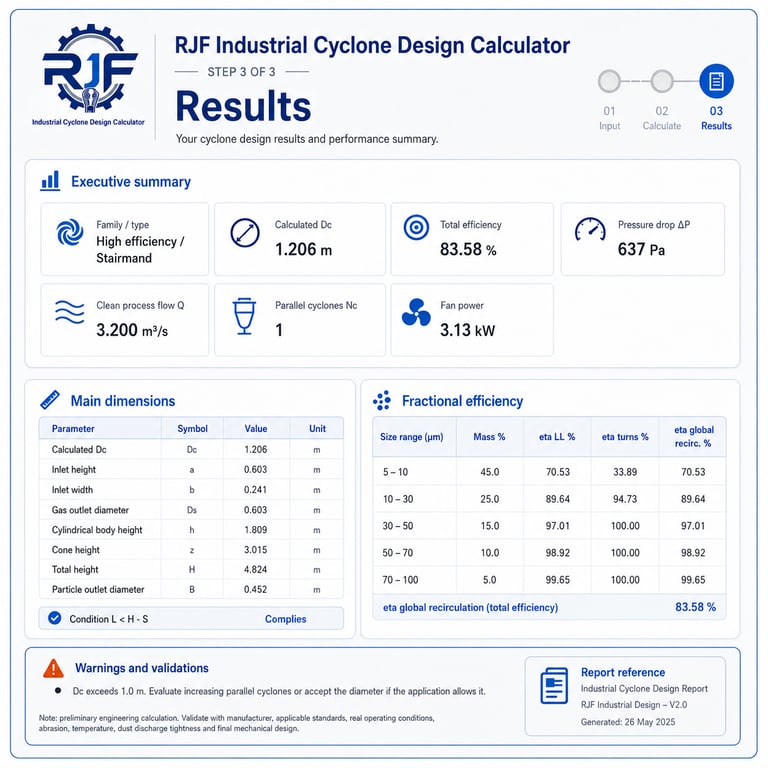

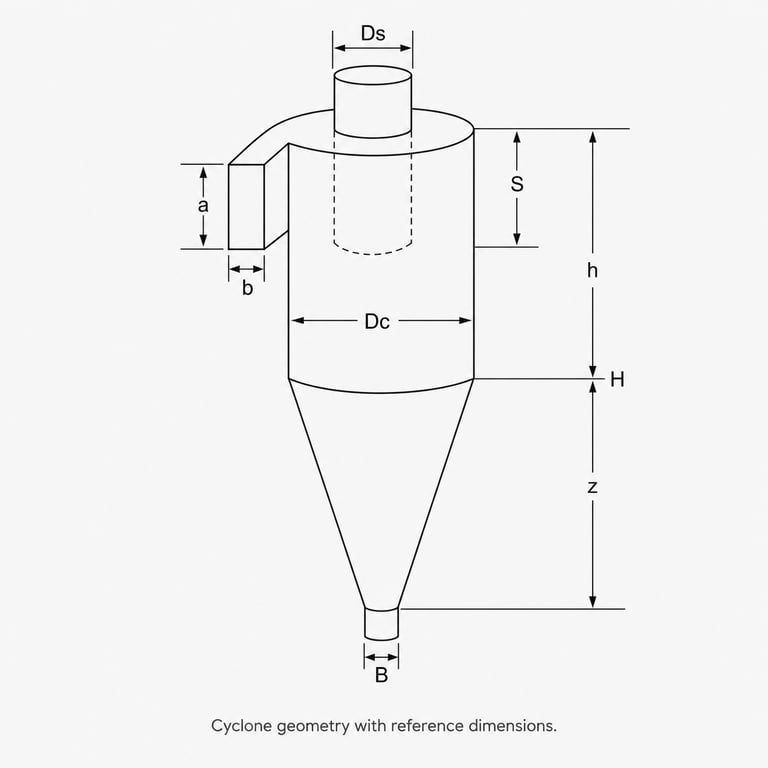

The report summarizes design inputs, cyclone family and method, calculated dimensions, pressure drop, estimated efficiency, fan power, dimensional sketch, cost references, off-design conditions, fractional efficiency, warnings, and validation notes. Results are formatted for technical review, internal documentation, and preliminary engineering reporting.
System requirements
Windows 10 or 11, 64-bit. No internet connection required after installation. No subscription. Single-seat license per purchase.
Input to output, no steps hidden
Licensing options for your engineering tools.
Flexible licensing for engineering calculation tools. Review the Student and perpetual license options, compare the terms, and activate your license from the Licensing page.
